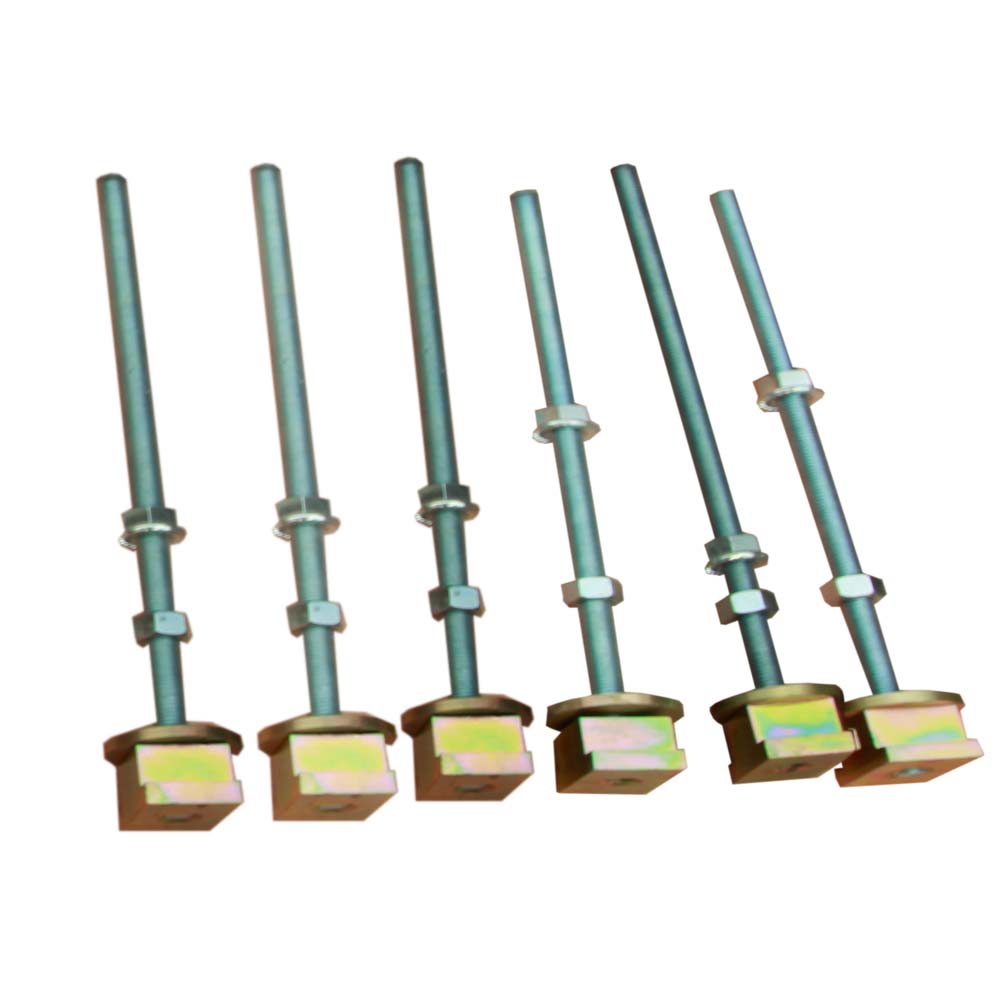

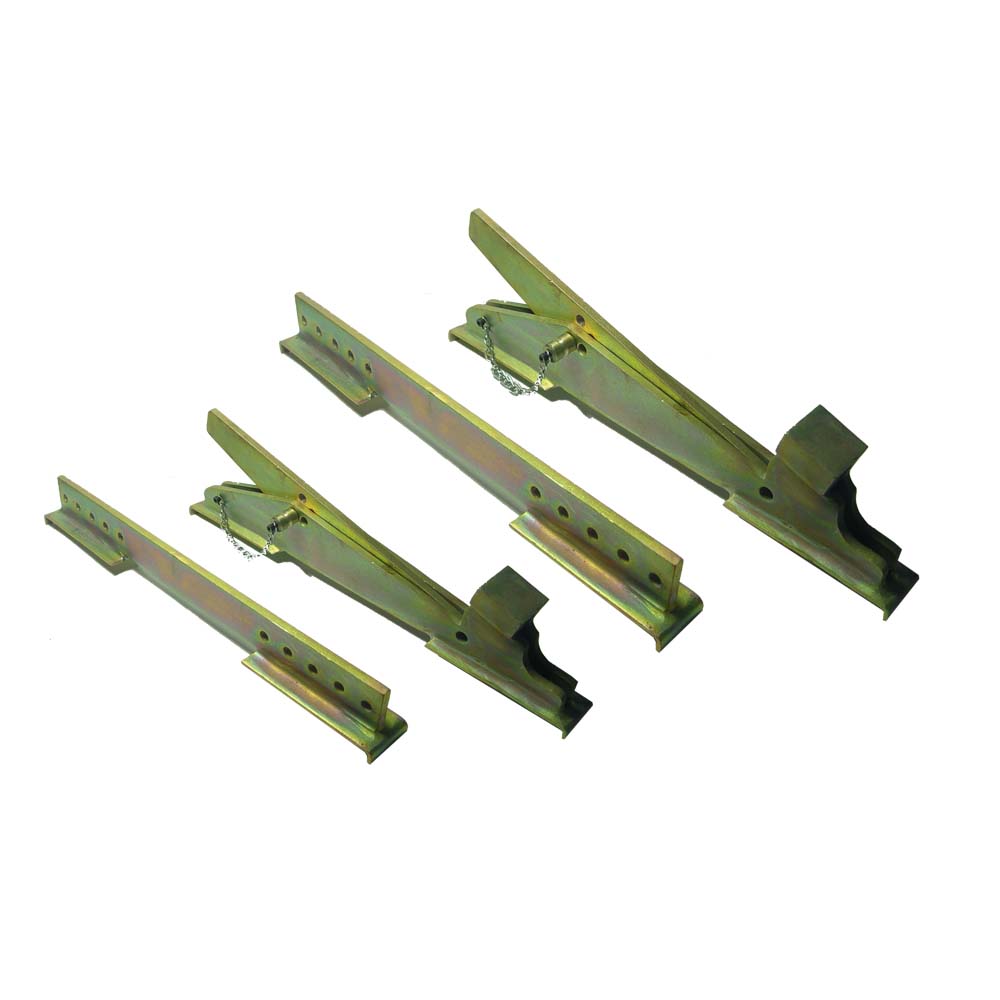

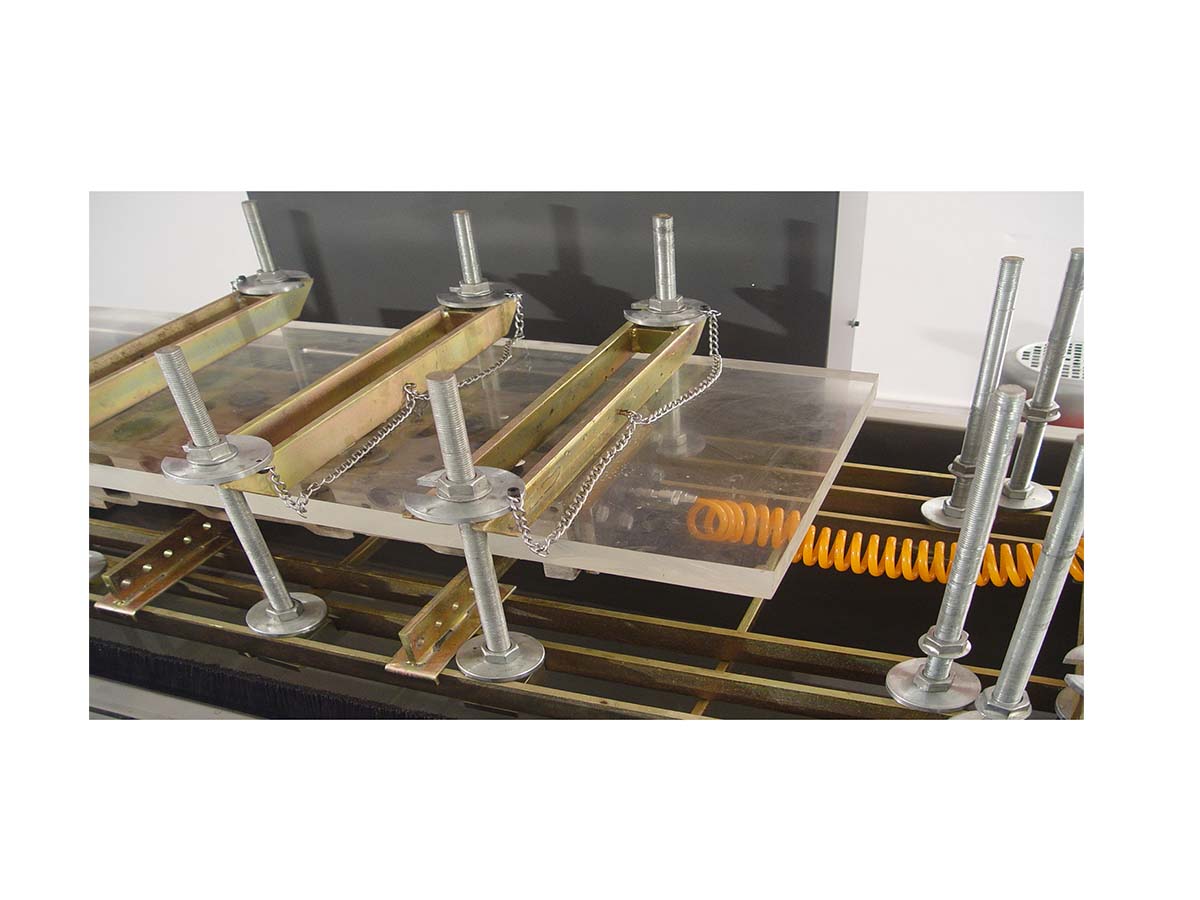

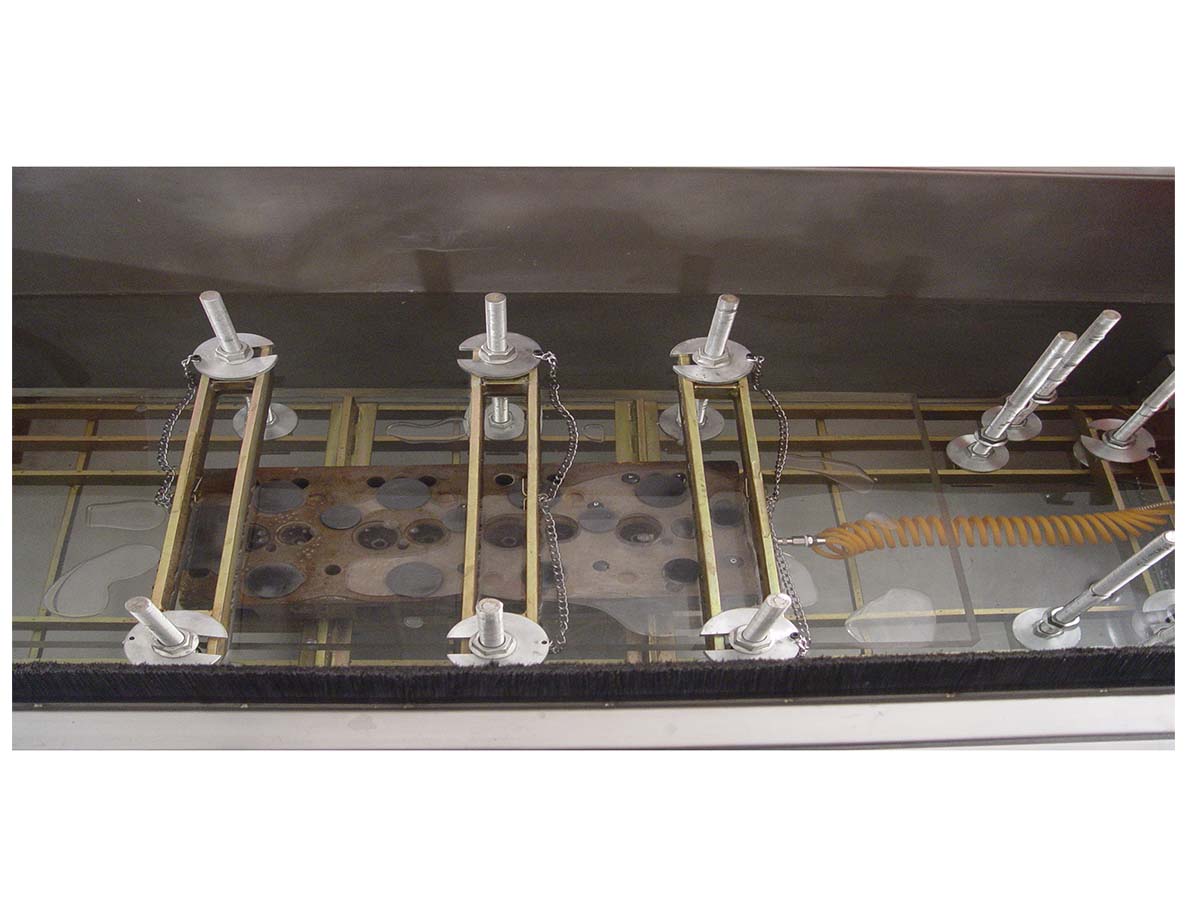

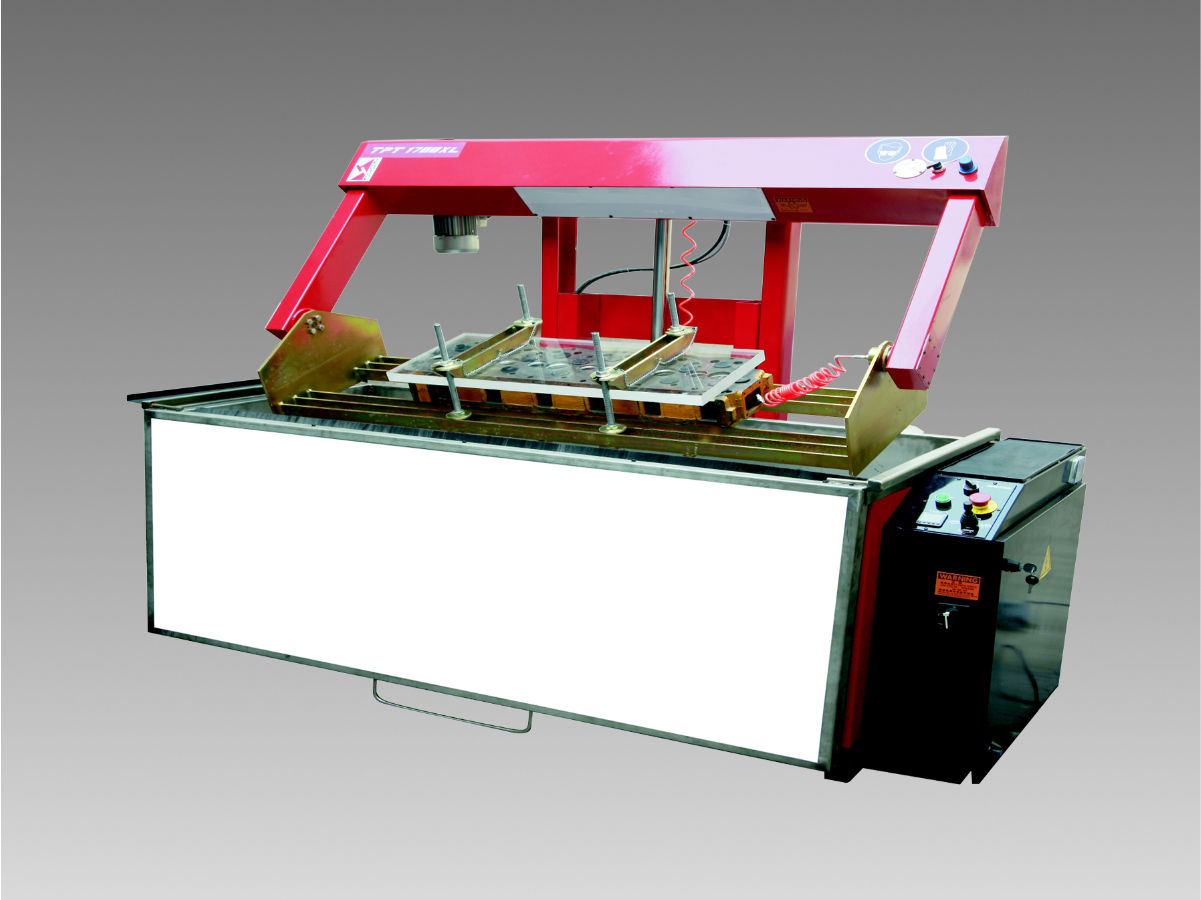

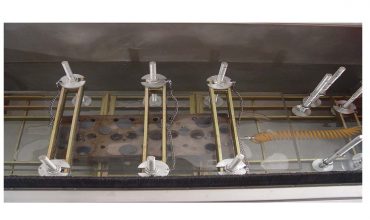

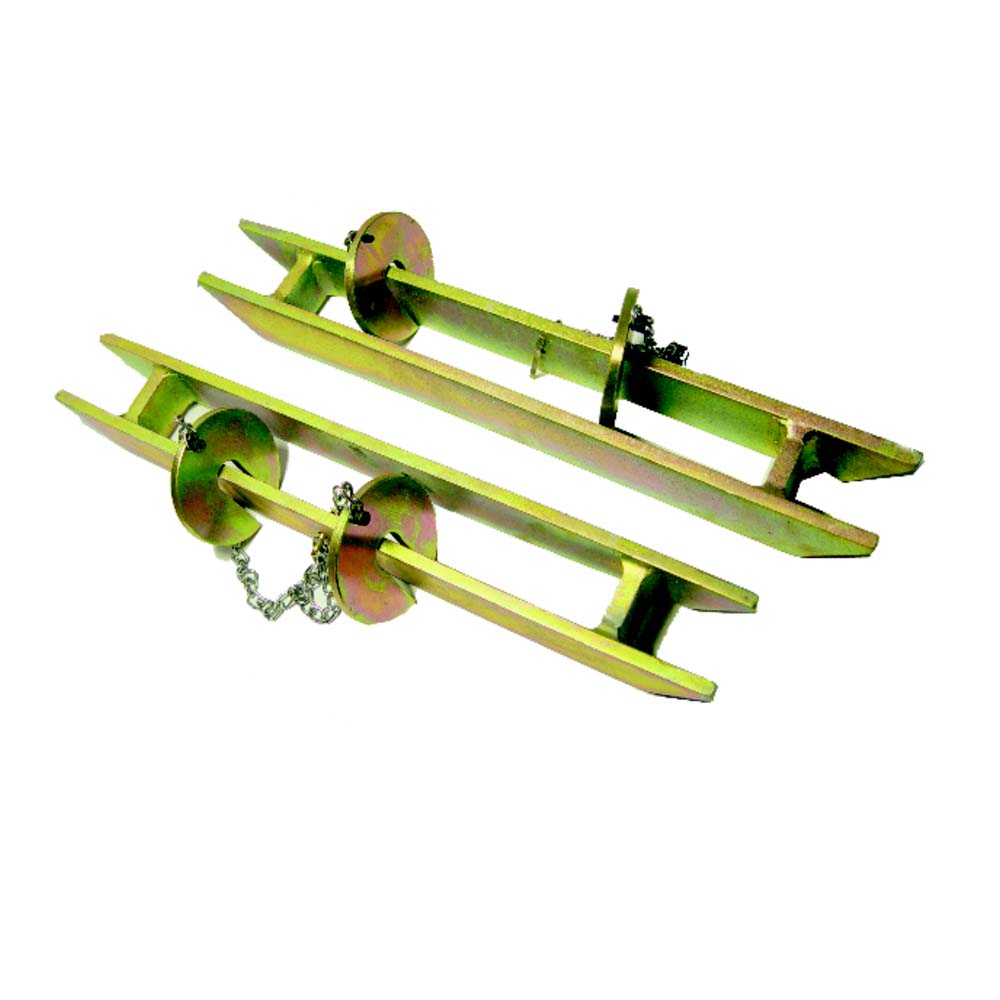

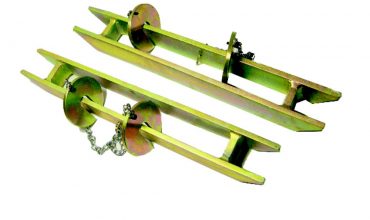

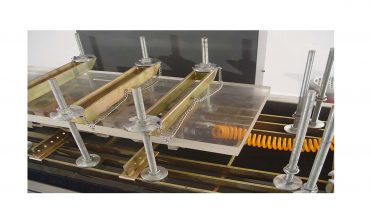

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits. Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.

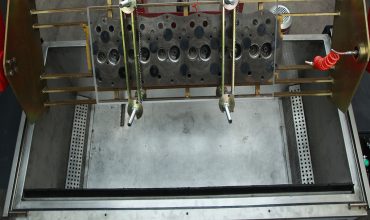

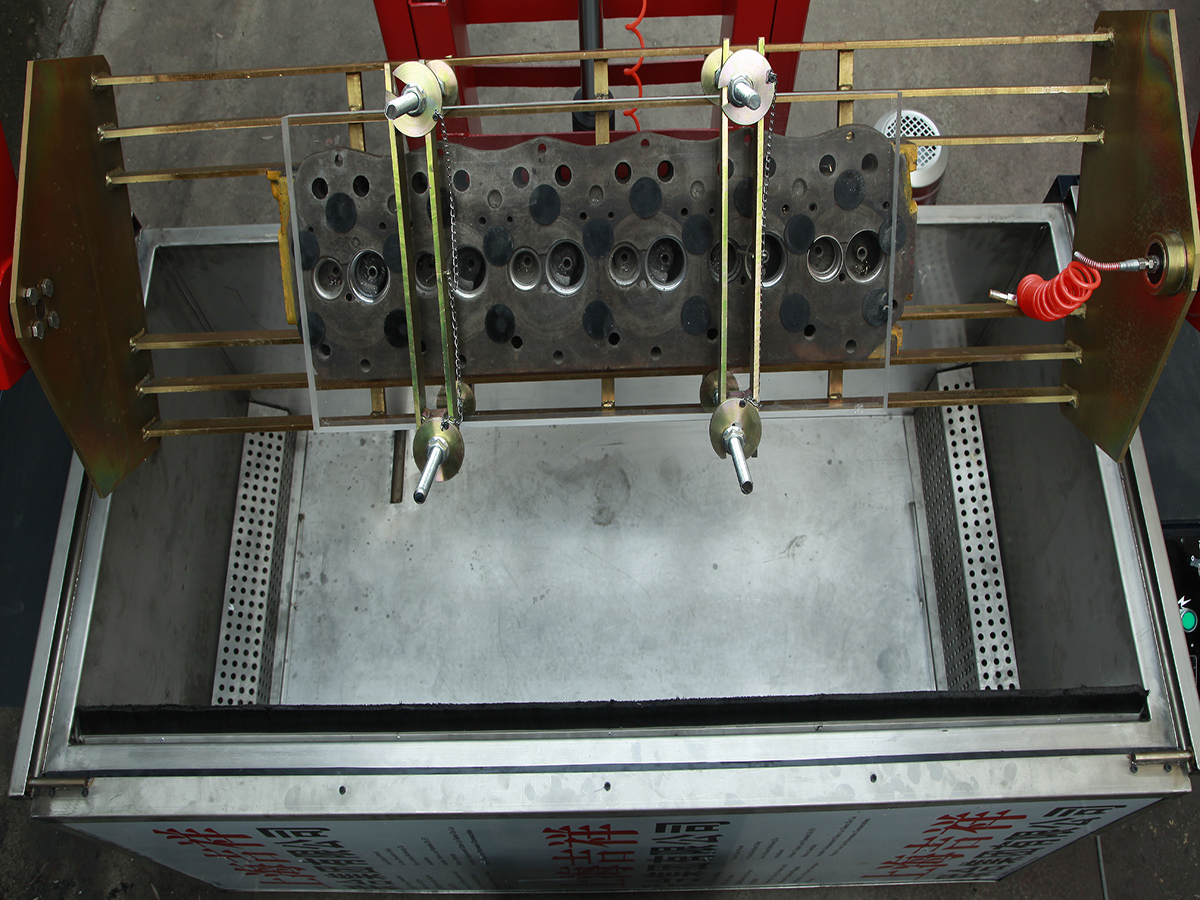

* 360° Electric powered roll-over fixture.

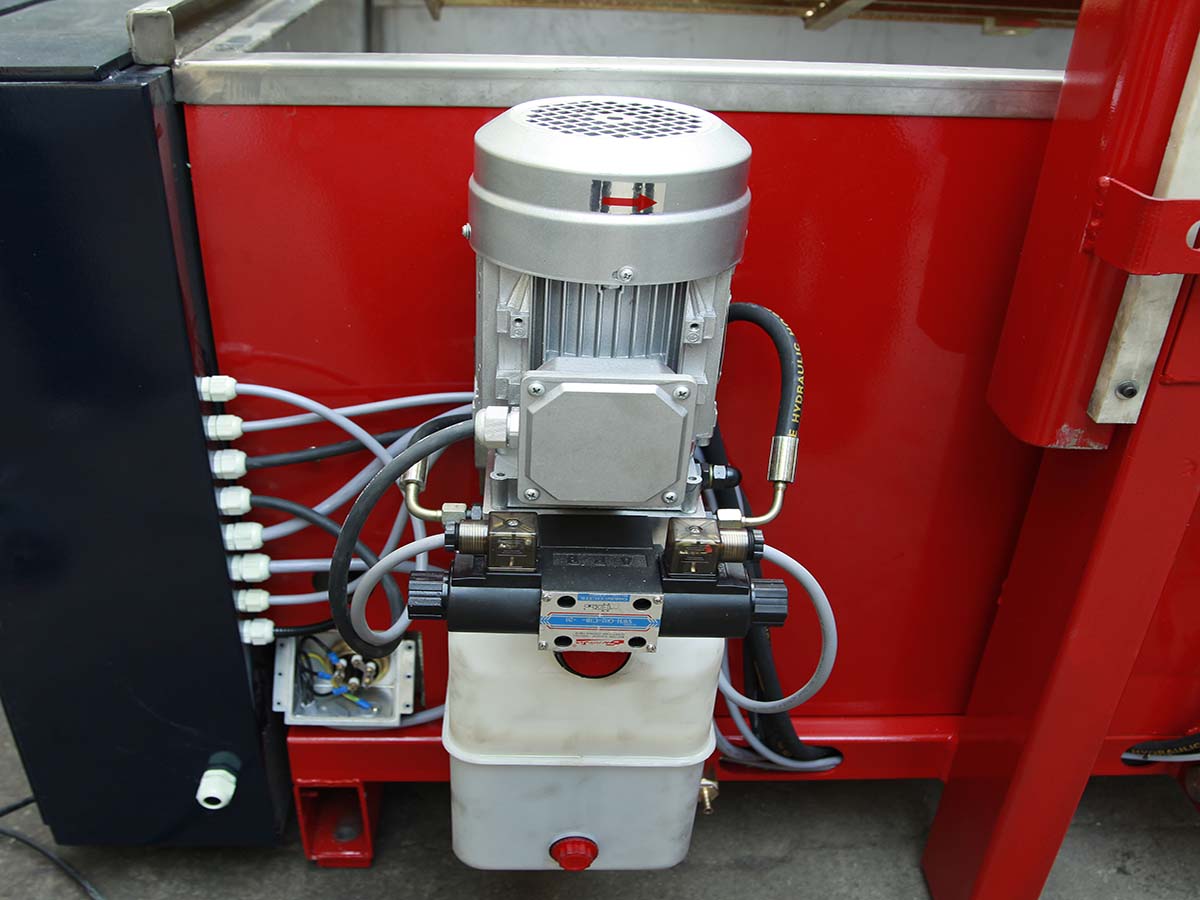

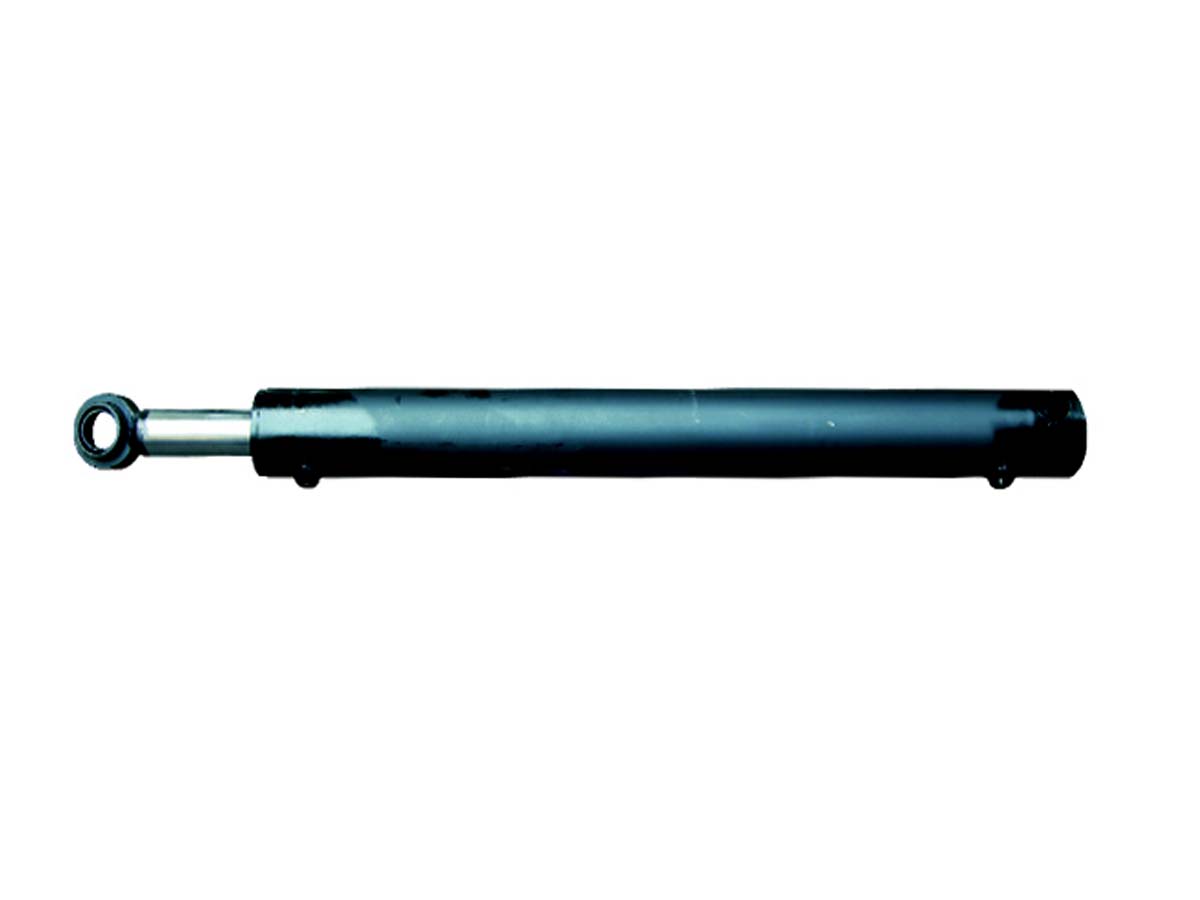

* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.

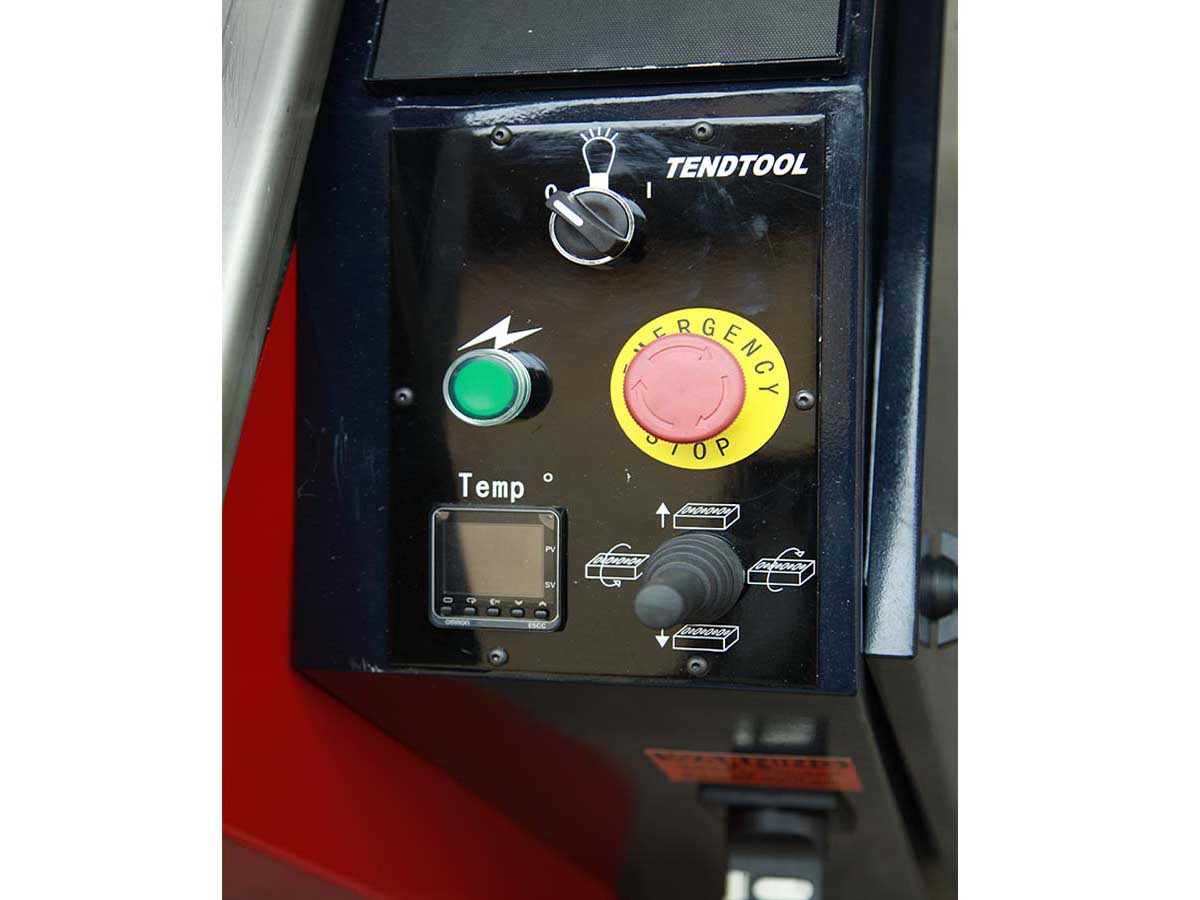

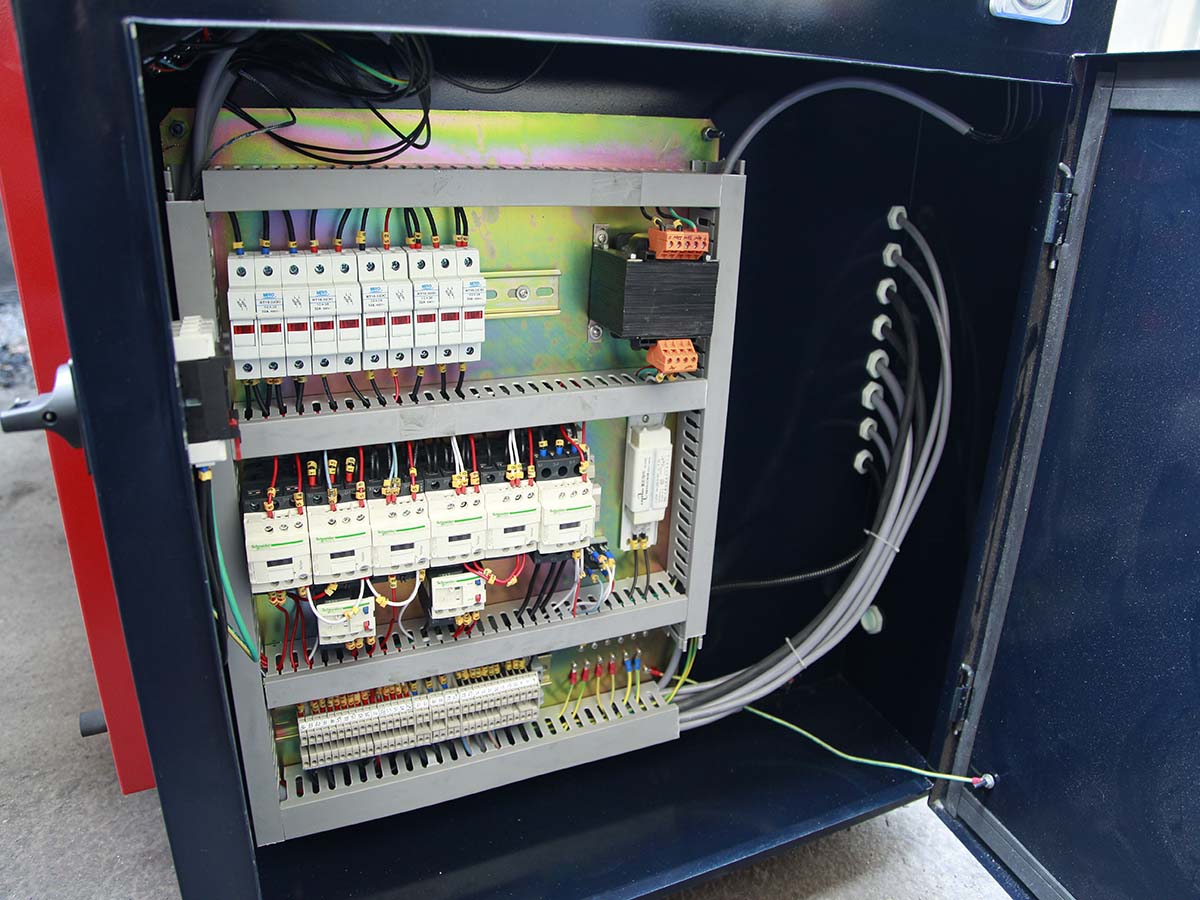

* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.
| Model | Unit | TPT1700XL |
|---|---|---|
| Length | mm/inch | 1350/53.15 |
| Width | mm/inch | 460/18.11 |
| Height | mm/inch | 410/16.14 |
| Heating elements | KW | 2X4.5 |
| Hdraulic hoist | KW | 0.75 |
| Gear-motor | KW | 0.25 |
| Rotational speed | Tr/min | 4 |
| Up and down travel time | mm/inch in 10 sec. | 620/24.41 |
| Thermostat | ℃ | 0-90 |
| Power supply | 3x220V-AC-60HZ or 3x380V-AC-50HZ | |
| Net weight approx. | kg/lbs | 650/1434 |
| Space requirements | 2100/82.68 | |
| Length | mm/inch | 2100/82.68 |
| Width | mm/inch | 1140/44.88 |
| Height | mm/inch | 1775/69.83 |
